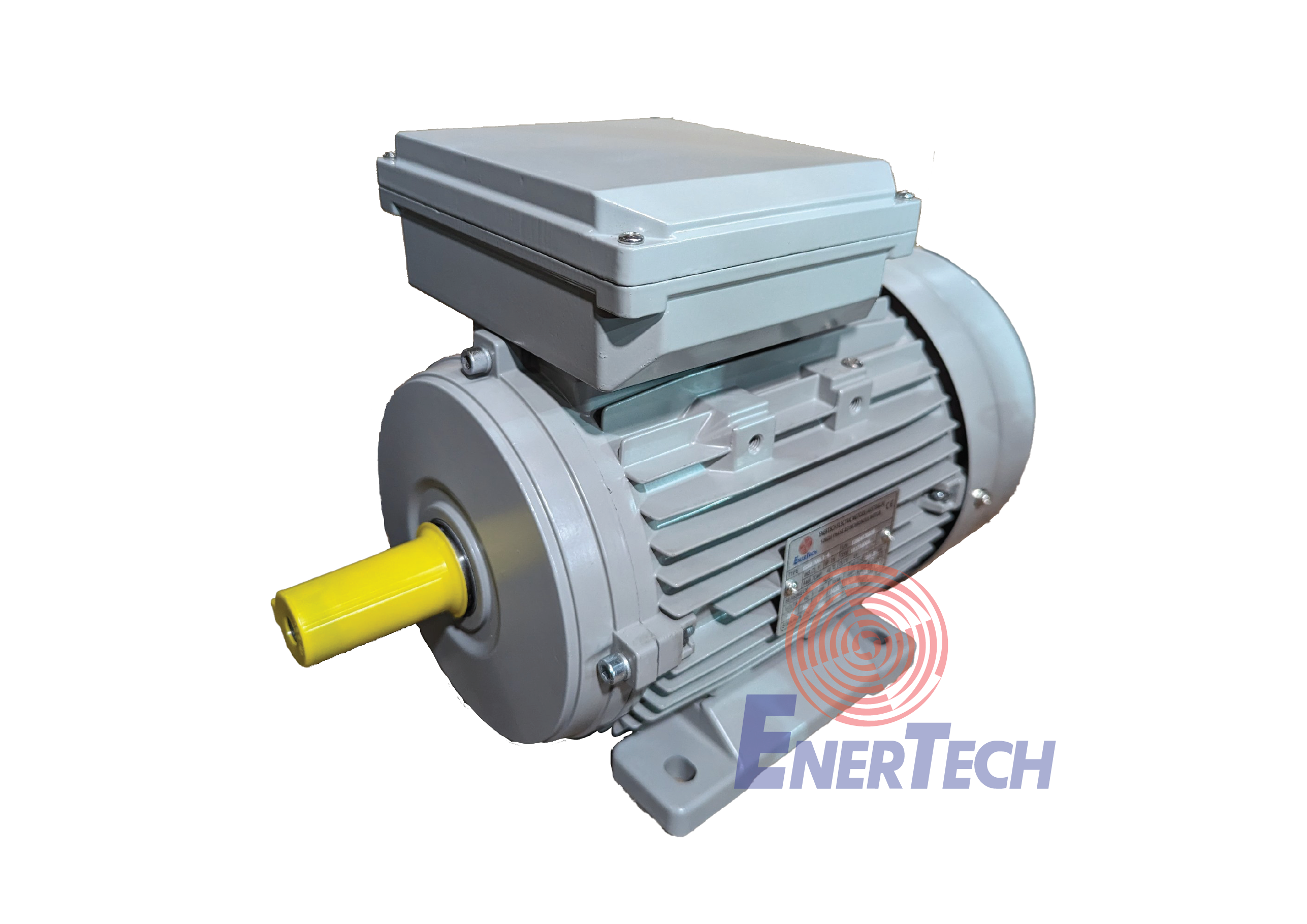

Single Phase Double Capacitor Motors ESD

Technical Information Single phase ESD motor
Power: 0.09-4 Kw
Speed: 3000, 1500 rpm
Poles: 2,4.
Mounting: foot, flange, foot-flange
Material: Cast / aluminum iron
Detail Information: Single phase EST motor
Enertech single phase motors generally conform to International Standards IEC 60034 và IEC 60072.
- Cast aluminum motors: ESST: Capacitor-run, output ratings from 0.09KW to 3KW, the starting torque is 0.3~0.7 (ESS) and 0.45~0.75 (ESST) compared with full load.
- Mounting type: foot mout (B3), flange mount (B5), small flange mount (B14A, B14B), foot-flange mount (B4), foot mount (B3) can be relocated.
- Standard voltage 220V 50Hz.
- Class F insulation
- Level of enclosure protection IP55 (IEC 60034-5).
- Light weight.
- To operate with a temperature rise of 40oC.
Enertech single phase motors are suitable for home electric appliances, pumps, fans, air compressors, refrigerators, medical apparatus and many other machines.
