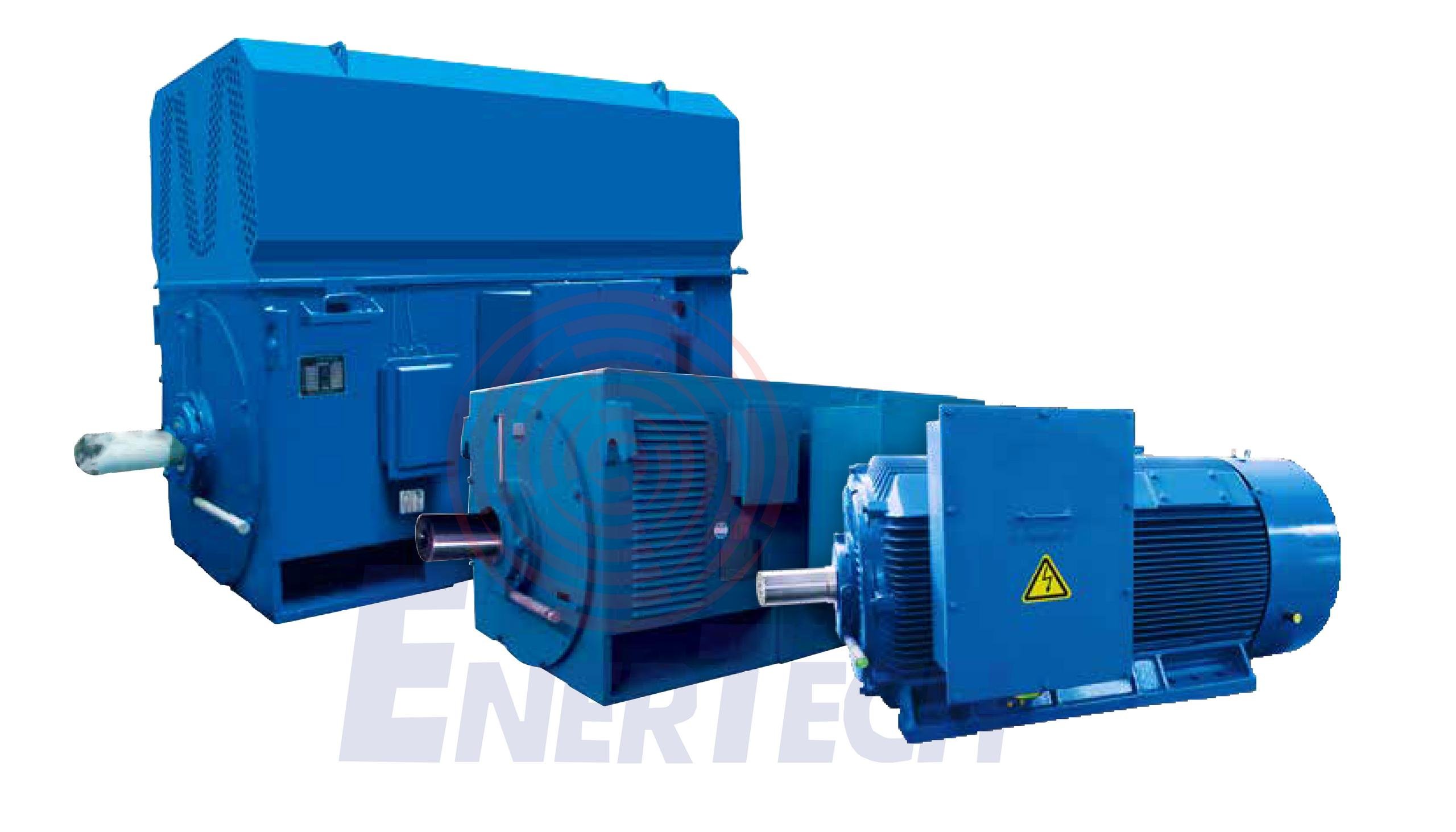

High Voltage Motors HEAA

  • Three phase
  • Cast Iron or Steel fabricated frame
  • IP54, IP55, IP56
  • 185 to 10000kW
  • High voltage 3.3kV up to 11kV
  • Frames 355 to 1000
  • 2, 4, 6, 8, 10, 12, 14 and 16 poles
  • Class F insulation
  • Temperature range -20°C to 40°C. Derated up to 60°
  • Cooling method IC01, IC411, IC611, IC81W
  • Copper bar rotor (Wound rotor motor optional)
  • 1 year warranty (extended warranty available)

Product Information

Enertech high voltage motors are made of high quality cast iron or fabricated steel frames. With an optimized construction and design, Enertech high voltage motors ensure strong, rigid frames and high power density. The laminations used in stator cores and rotor cores have premium surface insulation and low loss, which ensures higher efficiency.



Drawing

Updating

Catalogues

Updating
The same Catalogue
Order Filename Download
1 Instruction_Maintenance_Assembly(Miss ESC).pdf Click download
2 Enertech ESC IE1 Motors Product Catalogue Edition 2020.2.pdf Click download
3 Enertech ESC IE1 Motors Product Catalogue Edition 2020.2.pdf Click download
4 Enertech Aluminium Motors Product Catalogue - Version 4.pdf Click download
5 ESI Series Catalogue V.24.01.pdf Click download
