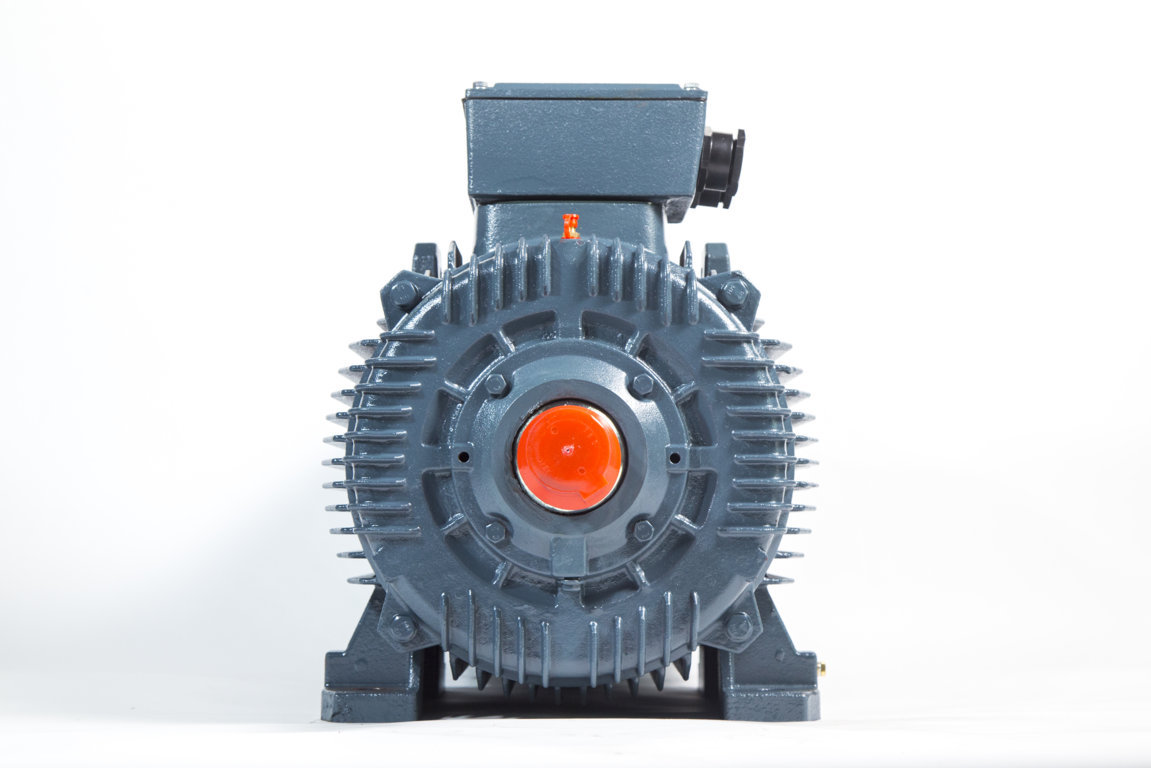

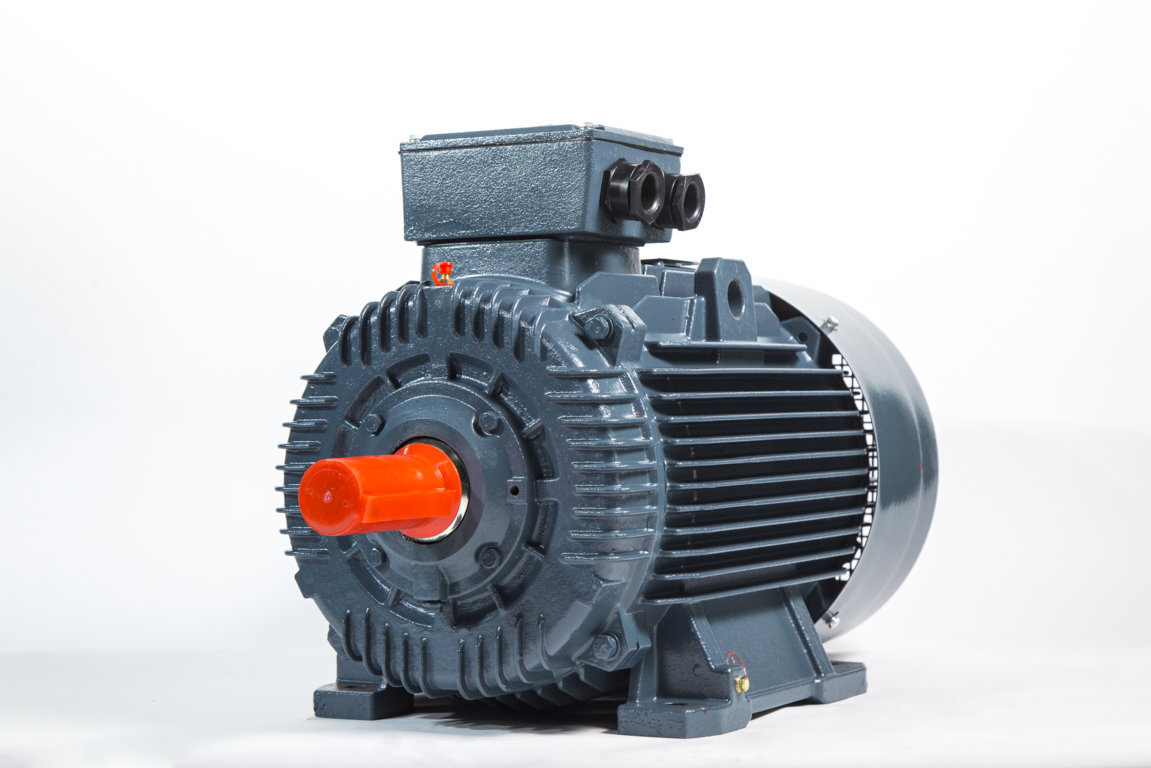

Detail Information: Three Phase Enertech ESC motors

Enertech ESC (Australia) three phase motors generally conform to International Standards IEC 60034 và IEC 60072.

- Output ratings from 0.37KW to 500KW.
- Mounting type: foot mount (B3), flange mount (B5), small flange mount (B14A, B14B), foot-flange mount (B4).
- The terminal box can be rotated through 4 positions, 90 part.
- Standard voltage 380V 50Hz.
- Class F insulation
- The standard cooling method is totally Enclosed Fan Cooled (TEFC) with code IC411 of IEC 60034-6
- Level of enclosure protection IP55 (IEC 60034-5). With IP56, IP65 and IP66 available on request.
- Operation within the cooling air temperature range of -20oC to +50oC.
- The permitted noise levels are fixed in IEC60034-9.
Enertech electric motors with improving designs, high efficiency energy, suitable to coordinate with most of equipments in pumps, refrigerators, Fisheries, Environment, …
